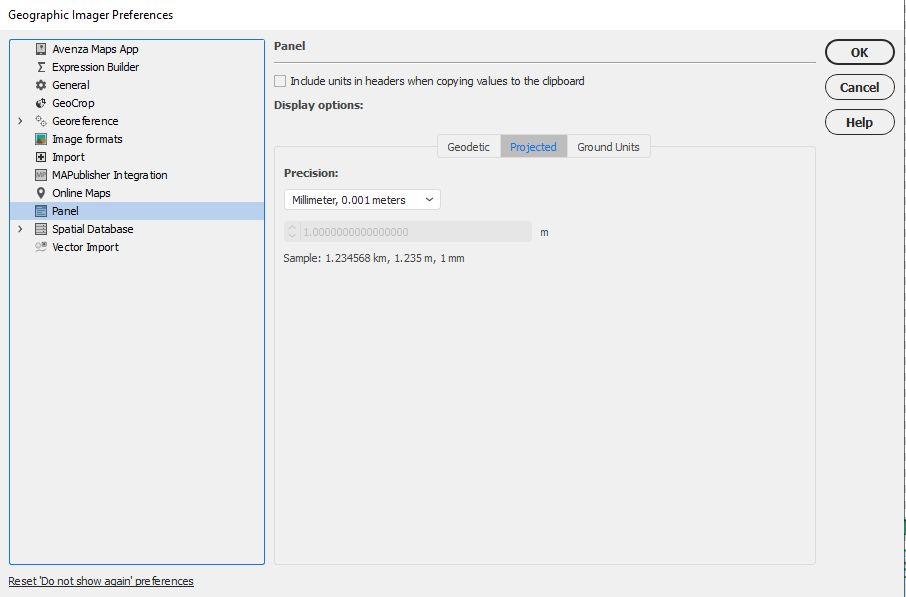

Panel Preferences

Default panel communication port

Geographic Imager uses a port for its internal communications with the panel. If another application installed on the machine is using the same port, panel communication may be disrupted resulting in the Geographic Imager panel not initialized or stopping to work at some point in the session. Only change if you are experiencing a problem with the Geographic Imager panel not loading properly. Changing the default port should resolve any conflicts. Contact Avenza Support for more information.

Include units in headers when copying values to the clipboard

When enabled option will include the set units in the headers when copying values to the clipboard.

Display options (Geodetic)

Lat/Long Format

Set the default of how latitude and longitude values are displayed in the panel.

Precision

Set how many decimals are displayed in the panel for geodetic coordinate systems (latitude and longitude values). Select Custom to manually specify a custom precision.

Display options (Projected)

Precision

Set how many decimals are displayed in the panel for projected coordinate system values (X and Y values). Select Custom to manually specify a custom precision.

Display options (Ground Units)

Precision

Set how many decimals are displayed in the panel for ground units.
