These format import settings affect how Geographic Imager handles data during import.
AutoCAD Drawing/Exchange
Group entities |
Group entities by layer name or geometry. |
Read block references as points |
Blocks are not expanded and read as points on import |

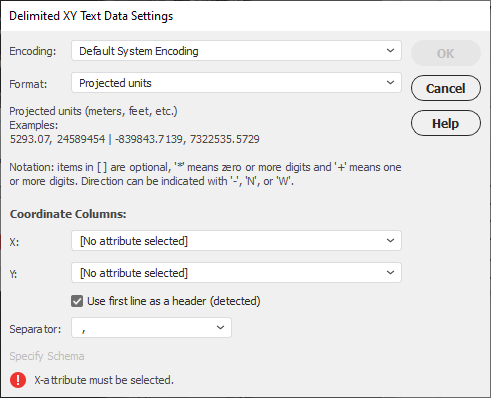

Delimited XY Text Data
Encoding |
Choose an appropriate encoding (e.g. Unicode, 8 bit) |
Format |
Choose the appropriate format of the XY text data (e.g. Projected units, Decimal Degrees) |
Coordinate Columns |
These drop-down lists contain the names of all the numeric columns in the selected file. Choose the columns containing the coordinate information. Enable Use first line as a header if the first line of the text file contains column headings. |
Specify Schema |
Click the link to change the data schema type for attributes in the delimited text data set. |
Esri Interchange File
Ignore TIC layer |
Enable this to suppress creating of _tic_point layer. Disable to create a layer holding the registration control points. |
Geography Markup Language
Coordinate order |
How MAPublisher interprets the order of X and Y coordinates. This may help when a third-party application exports coordinates in reverse order. Options: •Auto-detect [Default] •Read as XY •Read as YX |
Google Earth
Expand network links |
Enable this option to use of network-linked KML files. |
MicroStation Design
Group elements |
Choose how to group the elements: By geometry or By level. If elements are grouped by level, it may result in a large number of output files. |
Coordinate units |
Specify how feature coordinates will be interpreted and converted: Master or UOR. |

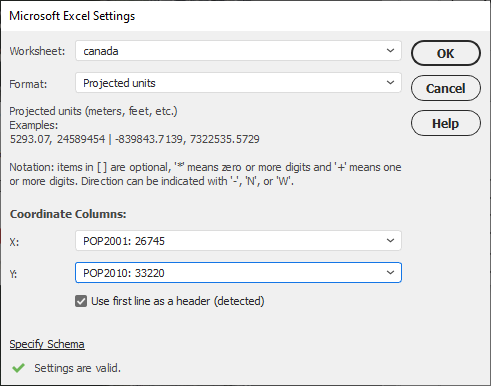

Microsoft Excel
Worksheet |
Choose the appropriate Excel worksheet to import data values from. |
Format |
Choose the coordinate format of the data to be imported (e.g. Decimal Degrees, Packed DMS, etc.) |
Coordinate Columns |
These drop-down lists contain the names of all the numeric columns in the selected file. Choose the columns containing the coordinate information. Enable Use first line as a header if the first line of the text file contains column headings. |
Specify Schema |
Click the link to change the data schema type for attributes in the delimited text data set. |
